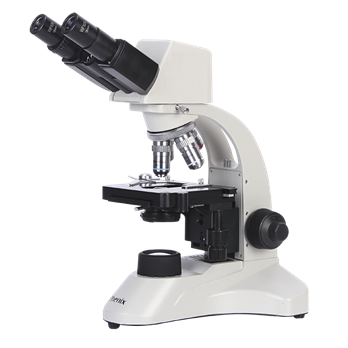

BMC500 series digital microscope
- Description
- Features
- Download
-
Phenix BMC500 series High-Level Biological Microscope Experiments,the use of New and Unique Phenix Completely Customize"ICCF® Infinity Corrected Colour Free Optical Sytem "Design, to Achieve the Performance, Quality, Appearance and Enhance the Comprehensive Breakthrough, Compared to the Same Products with Internationally Renowned Brand, the Comprehensive Performance is Completely Beyond, is Highly Cost-Effective Product.
The product can be used in higher education, clinical diagnostics, scientific research, laboratories and other high-level applications.

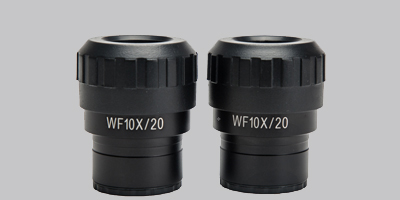

Eyepiece: High Eyepoint, Large field of view, No distortion, Diopter adjustable
The eyepiece adopts plan field distortion-free design, which can be observed with high eyepoint, large field of view (field of view up to Φ22mm), and diopter adjustable. The standard configuration is Φ20mm wide-field eyepiece. When using Φ22mm eyepiece, It can also completely eliminate the phenomenon of virtual field and yellow-green aperture generated by traditional small-field eyepiece observation, greatly enhance the comfort of observation.

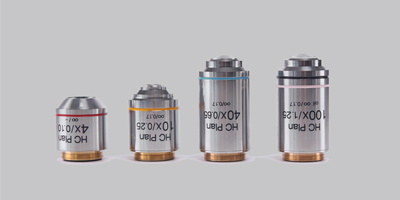

Objective: ICCF® Infinity Plan High Contrast Achromatic objective
The objective lens is designed with “ICCF® Infinity Plan High Contrast Achromatic” design.On the basis of the original infinity plan achromatic, the plan field degree, the contrast and the achromatic are promoted to the effect of the "semi-apochromatic plan field".At the same time, imported glass materials and advanced multi-layer broadband coating technology have greatly improved the plan field, sharpness, brightness and contrast of the image.Thereby the observed image is naturally realistic. Even with very thin sections,can also guarantee excellent imaging results.

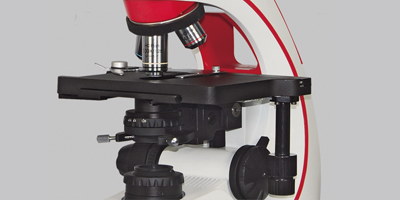

Working Stage: Detachable Super Large Stage
Double-layer mechanical moving stage, triangular steel column guides up and down, can hold two slice
Detachable, Anti-corrosive, Anti-mild, and Wear-resistant Stage .
Large size: 188mm × 145mm, long stroke: 76mm × 54mm
-
BMC500 Series Digital Microscope Main Technical Parameters
Product Model
BMC500-
DB310U-ICCFBMC500-
DB500U-ICCFBMC500-
DB800U-ICCFBMC500-
DBK10U-ICCFMicroscope Optical Part
Viewing Head
Infinity digital hinge binocular/30 degree inclined/360 degree rotatable
Eyepiece
High eyepoint: Wide field WF10X/Φ20mm、WF16X/Φ16mm
Objective
ICCF Corrected Colour Free optical system,
HC PLAN 4X、10X、40X（Spring）、100X（Spring, Oil）
Focusing
Coaxial /20mm/0.001mm
Nosepiece
4holes
Stage
Double layer mechanical moving stage/
Size 188×145mm/ moving range 76*54mm
Condenser
Abbe condenser /N.A.=1.25
Illumination
Kohler light、LED 3W/1Aand halogen 6V/30W
can be interchanged intelligently
Power
External switching power supply, DC6V/5A
Digital Part
CMOS Camera
Digital 3.1
mega pixels
Resolution
2048×1536
Digital 5.0
mega pixels
Resolution
2592×1944
Digital 8.0
mega pixels
Resolution
3264×2448
Digital 10
mega pixels
Resolution
3584x2748
Signal Output
Digital USB2.0 interface
Signal data line
USB2.0 Digital data line
Microscopic image software
PHMIAS Ver3.0
-
