XTL-165-XTWZ2T
- Description
- Features
- Download
-

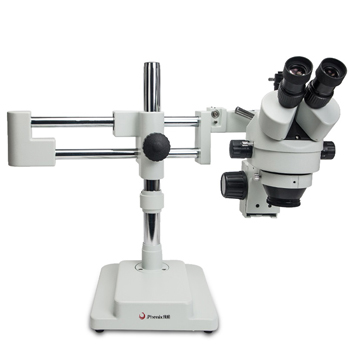

XTL-165-XTWZ zoom stereo microscope, zoom ratio 1:6.5, has long working distance, large depth of field; equipped with universal double boom stand, which can observe the objects in any direction,expand the observation range. There are various optional accessories to fully meet the needs of different users. The products are mostly used in electronic detecting and jewelry detecting and so on.
Optional accessories:

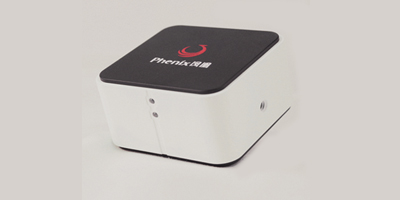

● HD digital camera , 2.0-20.0 million pixels optional

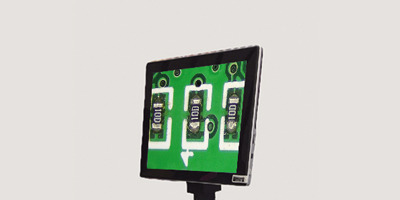

● LCD tablet (Windows/Android system), suitable for trinocular microscope

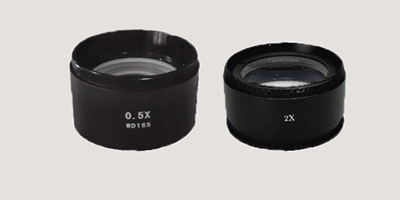

● Choose different additional objective lenses, 0.5X, 2.0X, to make the zoom range wider and the working distance range larger

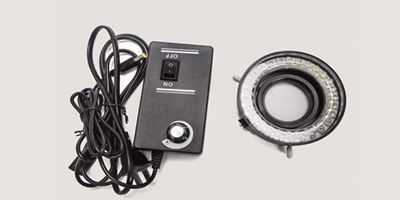

● LED ring light, brightness adjustable
-
XTL-165 Double Boom Stand Zoom Stereo Microscope Main Parameters
Product model
XTL-165-XTWZ2T
Total magnification
7X-45X
3.5X-180X(with auxiliary objectives and eyepieces)
Zoom ratio
1:6.5
Viewing tube
Compensation binocular head,
45°inclined,
interpupillary distance 55-75mm
Compensation trinocular head,
45°inclined,
interpupillary distance 55-75mm
Eyepiece
High eye-point, wide field, WF10X/Φ20mm
Objective
Zoom objective, 0.7X-4.5X
Diopter
Binocular diopter adjustment range ±6
Field of view
Φ5mm-Φ30mm
Working distance
30-160mm
Base stand
Universal bracket, cast iron base, wear-resistant stainless steel column, cross bar, cross bar with micro carving. Used in conjunction with the lifting group (focusing bracket), you can observe objects in any direction and expand the scope of observation.
Base size
210mm X 260mm
Column height
368mm
Column diameter
31.8mm
Matching aperture of column
31.8mm
Horizontal size
510mm
Optional
HD digital camera (2.0-20.0 million pixels)
LCD tablet (Windows/Android system), suitable for trinocular microscope
Choose different additional objective lenses, 0.5X, 2.0X,
to make the zoom range wider and the working distance range larger
LED ring light, brightness adjustable
-
