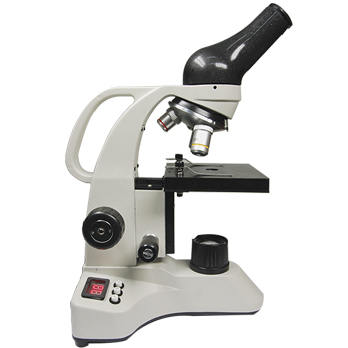

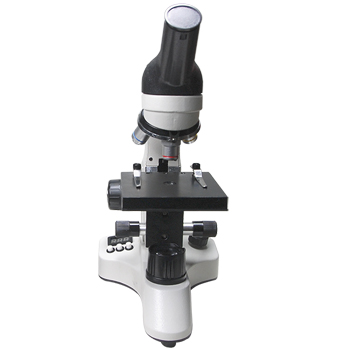

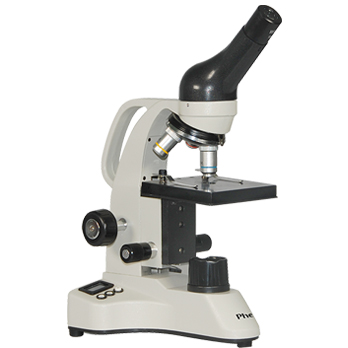

PH20W hermostat microscope
- Description
- Features
- Download
-
PH20 digital thermostat microscope is mainly used for animal husbandry(Thermostat microscopes are one of the essential equipment for artificial insemination laboratories). Most of the artificial insemination laboratories are not instantaneously completed,semen requires a stable temperature,37
PH20 digital thermostat microscope is mainly used for animal husbandry(Thermostat microscopes are one of the essential equipment for artificial insemination laboratories). Most of the artificial insemination laboratories are not instantaneously completed,semen requires a stable temperature,37℃ sperm has the strongest vitality,most of the semen need to be maintained at 35℃-37℃ or so),sperm and blood breeding in medical treatment.
Product Features:

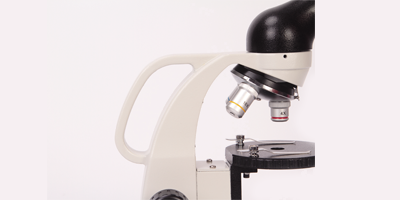

● Curved arm handle
Built-in handle, easy to take and move

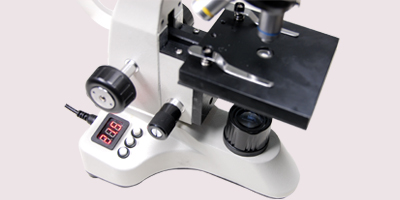

● Thermostat stage
The heating stage is made of specially formed aluminum alloy, and the temperature rise is uniform and stable.
The working surface temperature adopts LED digital display, accurate reading, temperature control range: room temperature -50℃
Fast and uniform heating, easy operation and safe use

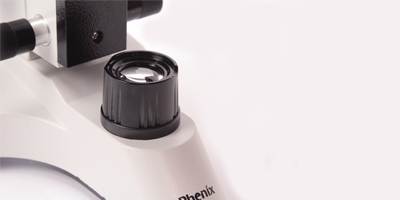

● Lighting system
Plano-concave mirror, 40mm (optional)
High-brightness LED, cold light source, rechargeable, adjustable brightness(standard)
-
PH20W Hermostat Microscope Main Parameters
Model Number
PH20W
Viewing tube
Monocular, 45° inclined, 360° rotatable
Eyepiece
WF10X/16mm, H16X/10.5mm
Objective
Achromatic objective 4X
Achromatic objective 10X
Achromatic objective 40X(Spring)
Nosepiece
Three holes inward
Homothermal stage
Homothermal
range
Room temperature -50℃
Control
accuracy
≤±1℃
Heating power
12V
Power
36W
Focusing system
Different coarse and fine focusing knob,
coarse focusing range 12mm,
fine focusing graduation: 1.3mm
Condenser
Wool glass, single lens
Illumination
LED cold light source, high brightness, adjustable brightness
Power supply
12V/4A switching power adapter
Package
Foam+Carton
-
