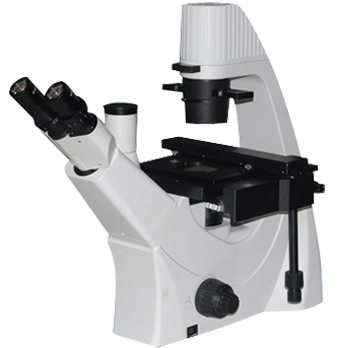

PH-XDS5 inverted microscope
- Description
- Features
- Download
-
The PH-XDS5 inverted microscope is multifunction microscope. It adopts excellent infinity optical system and provides excellent optical performance. It designed with good-looking shape, compact and stable high-rigidity main body, fully reflects the anti-vibration requirements of the microscope operation. The ultra-long working distance condenser system is suitable for tissue observation in a high culture dish. The lighting system fully considers heat spreading and safety. The ergonomic design concept makes the operation more convenient, comfortable and safe, and has more space broad. The phase contrast device can be attached to the optical path to realize phase contrast microscopic observation. This instrument is suitable for the microscopic observation of cells, tissues, transparent liquid tissues , and dynamic microscopic observation of cultured tissue in a petri dish. It can be used in scientific research institutes, universities, medical and health, inspection and quarantine, agriculture, animal husbandry and dairy industry, etc.
Function features:

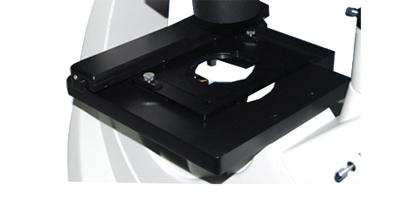

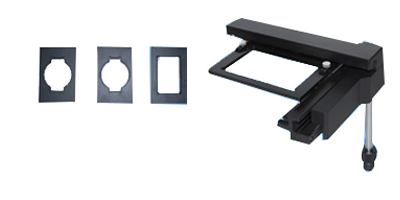

● Mechanical stage
double-layer mechanical stage, size: 185MM×140MM;
Moving range: 112mm×79mm, moderate design concept, more convenient and comfortable for users to operate the stage

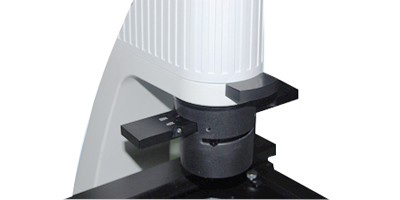

● Transmitted illumination system
The illumination system with 9W LED (brightness adjustable ) can provide clear and bright image for light field observation , but also for the phase contrast observation. Ultra-long working distance condenser is suited for observation in a high culture dish.

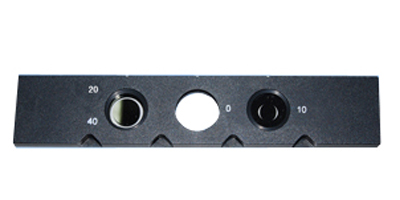

● Phase contrast board
Insert the phase contrast board into the slot of the condenser. According to the phase contrast objective choose right phase contrast ring into the light path to perform phase contrast observation, which is simple and practical, suitable for some basic Phase contrast observation occasions. (Adapt to 10X, 20X, 40X phase contrast observation)
-
PH-XDS5 Main technical parameters
Main Parameters
Total Magnification
100X-400X
Mechanical tube length
∝
Conjugate distance of objective
∝
Eyepiece Tube
Inclined 45°, can be shot in 100%light flux,
interpupillary distance:48-75mm
Eyepiece
Wide-field eyepiece
WF10X
field of view number φ22mm
Eyepiece interface φ30mm
Parfocal distance 10mm
Centering telescope
Objective
Magnification
N.A.
Working distance(mm)
Thickness of cover
Remarks
10x
0.25
4.27
1.2
20x
0.4
8
1.2
40x
0.6
3.5
1.2
Phase-contrast objective
10x
0.25
4.27
1.2
"PHP2"
Nosepiece
Quintuple,Five holes
Stage
Mechanical Stage, size: 300mm×170mm,
moving range: 75mm(longitudinal)×132.5mm(transvesve)
Culture dish size
circular: φ28mm-100mm, Thickness≤1.2mm
quadrate: W≤100mm,L≤130mm,Thickness≤1.2mm
Focus system
Coaxial coarse/fine focus, with tension adjustable and up stop,
minimum division of fine focusing is 2μm. Effective distance 11mm
Condenser
Long working distance condenser, working distance: 70mm,
and with pull board phase contrast unit
Phase-contrast condenser
Sliding phase contrast equipment, center adjustable
Illumination
9W LED, adjustable brightness
Filter
Frosted grass and blue filter
Accessory
hexagonal socket wrench(M4)
-
